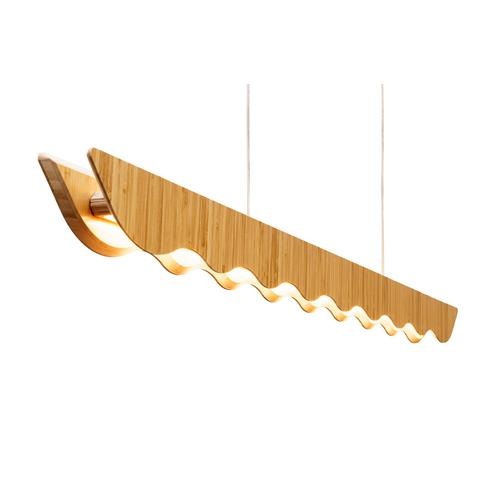

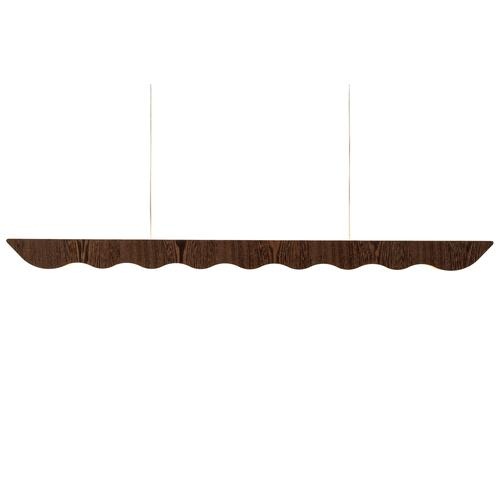

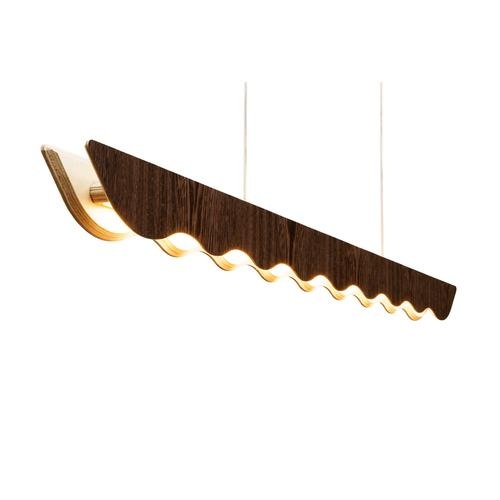

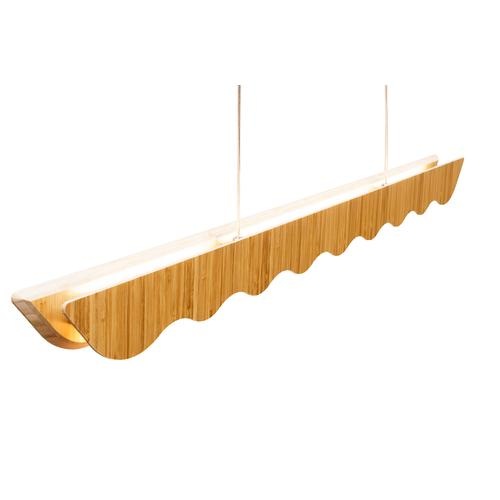

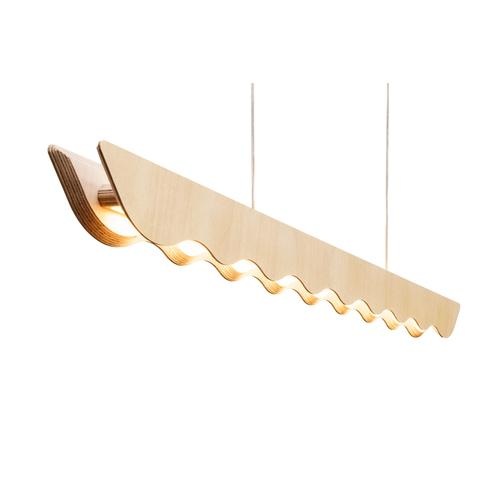

The Raglan Wave bar design by Ryan Horrell of Formation Lights takes its shape from the waves that roll into Raglan, forever shifting and sculpting the coastline. Its flowing curves echo the rhythm of the surf, sometimes calm and glassy, other times powerful and relentless, capturing the way the ocean both erodes and defines the land. Just like the coastline, the design carries a sense of movement frozen in form, a reminder of how the sea’s energy is always present, shaping everything it touches.
The Raglan Wave light is available in multiple sizes and three finishes. You have the option of concealing the LED Driver in the ceiling or surface mounting on the ceiling a plywood housing.
Finishes: Wenge / Birch / Natural Bamboo
Material: 10mm veneer ply for the form pieces and structural elements of the LED Bar frame. For heat dissipating reasons the LED strip light is housed in an aluminium channel. This effectively dissipates majority of the heat created from the LED’s, increasing their longevity. Clear PVC cable.
Dimensions:
- 1200mm Long x 50mm High x 50mm Deep
- 1500mm Long x 50mm High x 50mm Deep
- 1800mm Long x 50mm High x 50mm Deep
- 2000mm Long x 50mm High x 50mm Deep
Drop Length Supplied: 3m
Colour Temperature: 3000k (Warm White)
LED: Bottom Strip – 24.5 Watts per metre / Top Strip – 9.6 Watts per metre
Light output: 2000 Lumens per metre
Driver: 24 Volt 60W Dimmable transformer included
LED Life Span: 50,000 hours
Weight: 2kg
Dimmable: Yes
Warranty: 2 years for transformer and LED strip
240v
What is included:

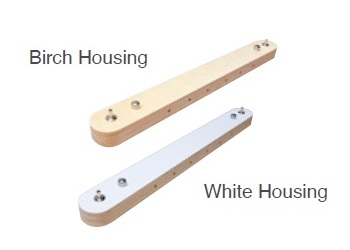

- Plywood retrofittable enclosure for transformer or a circular steel ceiling mountable adjustable bracket.
- 24V 60 Watt Dimmable Transformer
- LED Raglan Light Bar
- 6x 6G Phillips ceiling screws and anchors
- All electrical fittings provided are for installation by a qualified electrician.
*Note light or dimming switches are not included, see additional tab for the type of light or dimming switch required.
Designed & made in New Zealand
