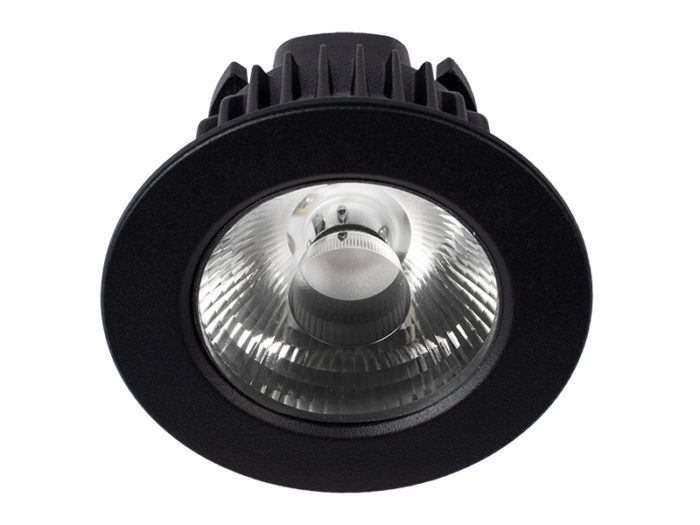

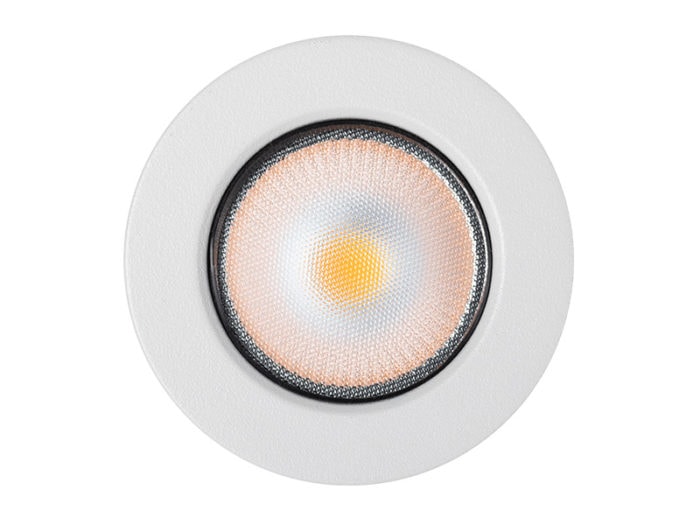

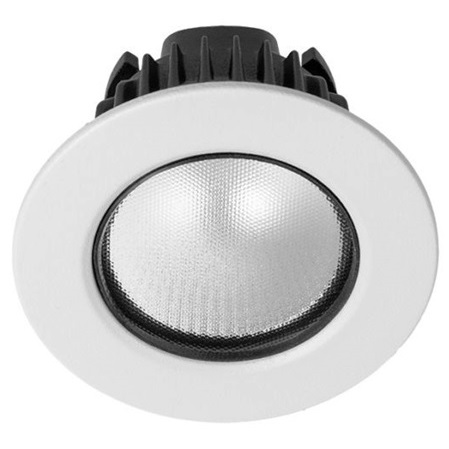

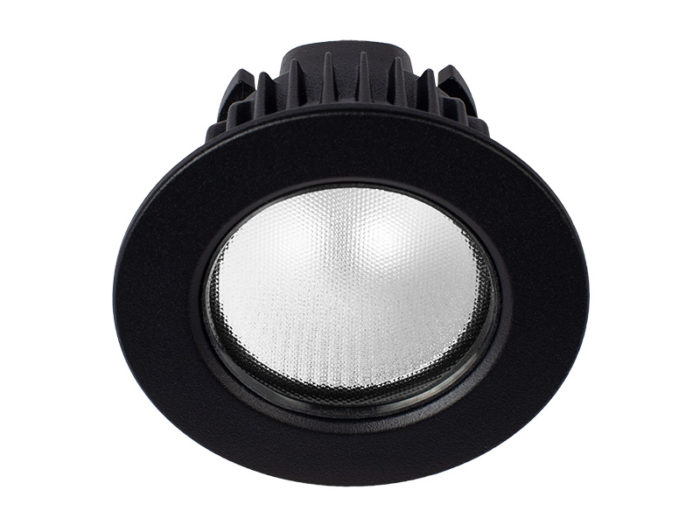

ZELA Fixed by Switch Lighting


SKU: N/A. Categories: , , Tags: , ,

ZELA is the next generation of LED downlight by New Zealand LED manufacturers Switch Lighting. The illumination from ZELA luminaires reveals natural colours that are not over or under saturated, improving your sense of depth, contouring and 3-dimensionality.

ZELA luminaires have very even light distribution across all beam angles, and restrained soft, feathered edges with minimal light spill, and the added benefit of an IP65 waterproof rating.

  • Compact size
  • Suitable for indoor and exterior (soffits)
  • Excellent range of beam options
  • IP65 front
  • Superior colour rendering


Finishes Available: Textured White, Textured Black

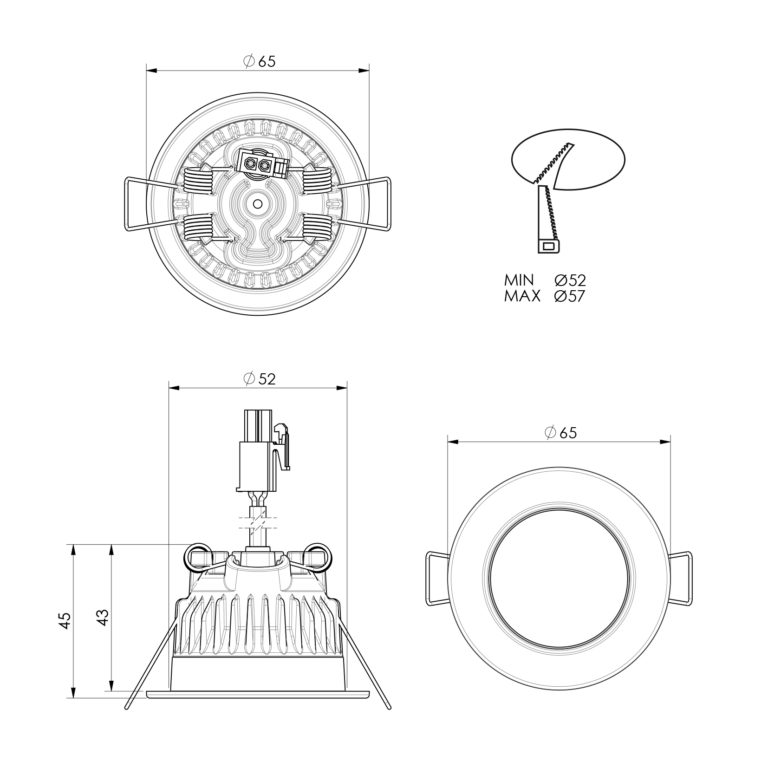

Dimensions: Ø = 65mm x 45mm deep (Cutout 52mm – 57mm)

Wattage: Dependent on Driver used:

  • 100mA = 4.3w / 400 Lumens
  • 150mA  = 6.4w / 580 Lumens
  • 180mA = 7.7w / 670 Lumens
  • 220mA = 9.4w / 780 Lumens  (CA-135 Rated)

Colour Temperature: Extra Warm White (2700k) / Warm White (3000k) / Natural White (4000k) / Now available with Sunset dimming technology (3000k-2200k) OR Tunable White which enables CCT choice (4000 – 1800K) at any intensity. Perfect for Circadian Rhythm healthy lighting and other lighting automation scenes.

CRI: Options of 90 or 97

Beam Spread: 5 luminaire designs each with options of 9°, 15°, 20°, 40°, 55° and 90° beam angles

Driver: Includes Dimmable Driver

Warranty: 7 years Luminaire / 5 years Driver

A fire rated version of this downlight is also available

Allow 5 – 7 days for delivery as these lights are made to order


Designed and made in Nelson, New Zealand




Beam Angle

9 Degree beam, 15 Degree Beam, 20 Degree Beam, 40 Degree Beam, 55 Degree Beam, 90 Degree Bream

Colour Temperature

2700 Kelvin – Warm White, 3000 Kelvin – Warm White, Sunset Dimming
