ZELA Deep Tilt LED Downlight

ZELA is the new generation of LED Downlight by New Zealand LED manufacturers Switch Lighting. The light from ZELA luminaires reveal natural colours that are not over or under saturated, improving your sense of depth, contouring and 3-dimensionality.

ZELA luminaires have very even light distribution across all beam angles, and restrained soft, feathered edges with minimal light spill, and the added benefit of an IP65 waterproof rating.

Choose the ZELA Deep Tilt LED Downlight where you want discrete , targeted lighting

The ZELA Range comprises 8 luminare designs each with options of 9°, 15°, 20°, 40°, 55° and 90° beam angles. These are all available in 2700k, 3000k and 4000k: Most beam angles are also available in 2400k. 40° and 55° beam angles are also available in sunset dimming (3000k – 1850k)

The Zela Deep Tilt LED Downlight is supplied in either textured White or Black finish with dimmable LED Driver.

7.7 watt LED (180mA LED Driver) = 680 Lumens

‘Sunset Dimming’ option available (= 530 Lumens)

High colour rending index of CRI90 – CRI97

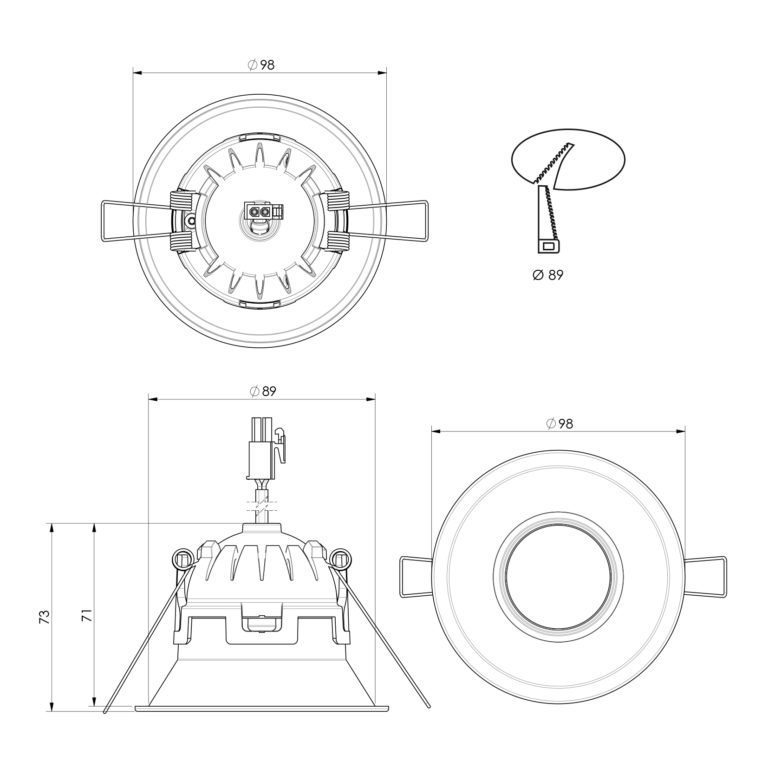

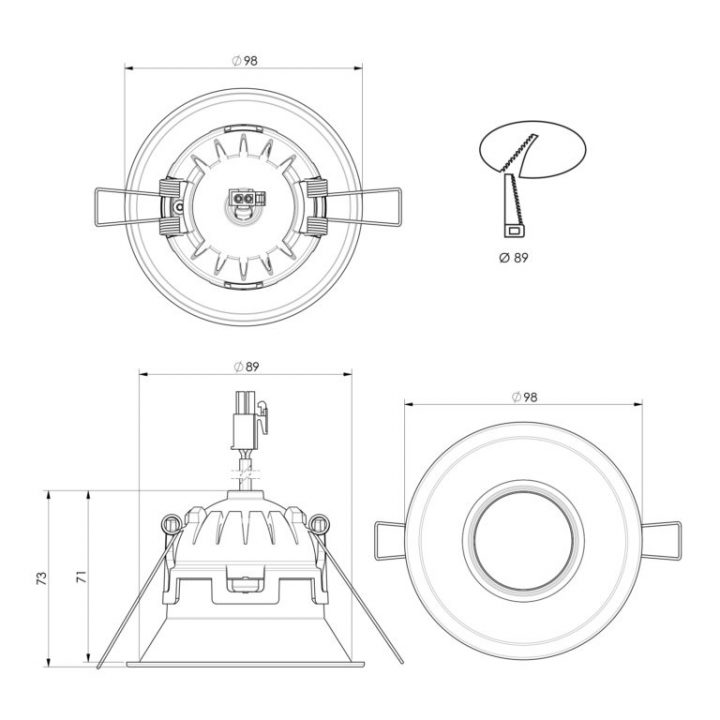

Face Diametre;  98mm x 73mm deep (Cutout 89mm)

IP 65 waterproof rated

IC-F rated (Abutted & Covered)

WARRANTY: 7 years Luminaire / 5 years Driver



Allow 5 – 7 days for delivery as these lights are made to order



Beam Angle

9 Degree beam, 15 Degree Beam, 20 Degree Beam, 40 Degree Beam, 55 Degree Beam, 90 Degree Bream

Colour Temperature

2700 Kelvin – Warm White, 3000 Kelvin – Warm White, Sunset Dimming
