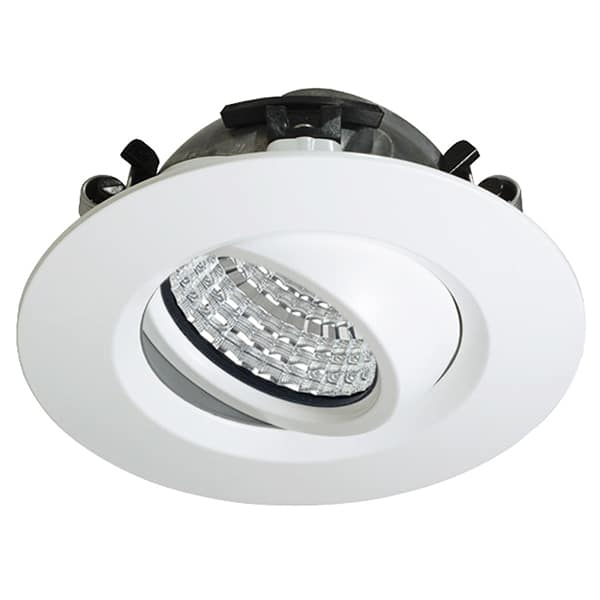

D-LIGHTZ Tilt by Switch Lighting


Made right here in New Zealand by the innovators at Switch Lighting, and awarded by the IES (illuminating Engineering Society). The D-Lightz – Tilt, is the ideal light for recessing into sloped ceilings, high-lighting artwork and other general lighting applications. The D-LIGHTZ tilt offers a choice of different lens options for different settings (‘Prismatic’ for a softer spread of light, and ‘Ultra Low Glare’ for maximum glare control, ‘Opaque’ for wide washing of light)

  • Fully adjustable 360° gimbal
  • 26° tilt
  • suitable for indoor and exterior (soffits)
  • wide range of beam angles
  • fully sealed – IP65

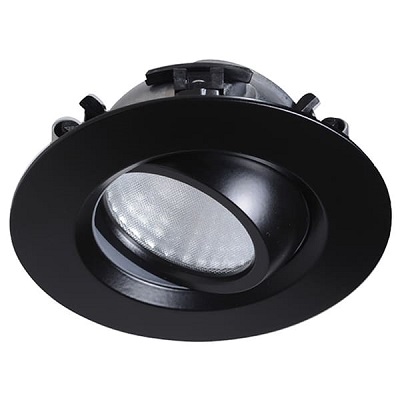

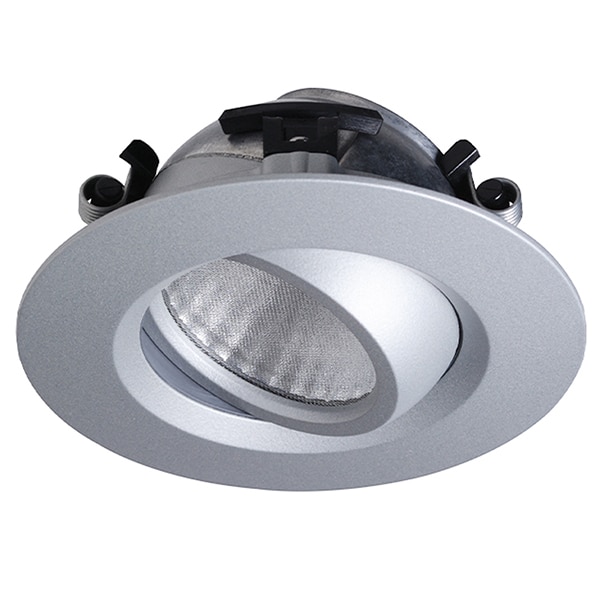

Finishes Available: White, Black or Silver colour.

Dimensions: Ø = 100mm x 48mm deep (Cutout: 83mm-92mm)

Wattage: Dependent on Driver used:

  • 150mA   = 6.8w / 550 Lumens
  • 220mA = 9.2w / 800 Lumens
  • 300mA = 13.2w / 1000 Lumens (CA-135 Rated)

Colour Temperature: Extra Warm White (2700k) / Warm White (3000k) / Natural White (4000k) /  Now available with Sunset dimming technology; 3000k-2200k

CRI: Options of 90 or 97

Beam Spread: 20 degree / 40 degree / 60 degree / 90 Degree options

Driver: Includes Dimmable Driver

Warranty: 7 years Luminaire / 5 years Driver


Designed and made in Nelson, New Zealand
