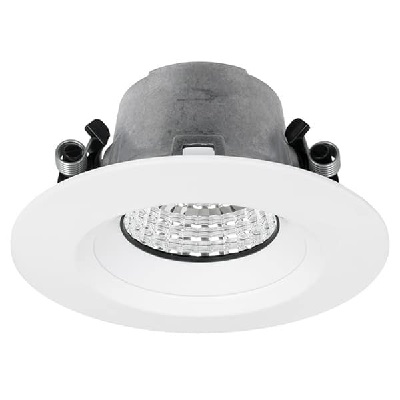

D-LIGHTZ Fixed by Switch Lighting


The D-LIGHTZ Fixed by Switch Lighting is the perfect downlight for general illumination. With a variety of beam spread & brightness options and watertight seal this LED downlight can be used almost everywhere. Rated IC-F to be completely covered with insulation, the D-Lightz is New Zealand’s leading LED downlight. The D-LIGHTZ  offers a choice of two different lens options for different settings ( ‘Prismatic’ for a softer spread of light, and ‘Ultra Low Glare’ for maximum glare control)

  • Compact size
  • Recessed light source for low glare
  • Suitable for indoor and exterior (soffits)
  • Fully sealed – IP65 front
  • Zero heatloss from the living space into the attic or roof void.

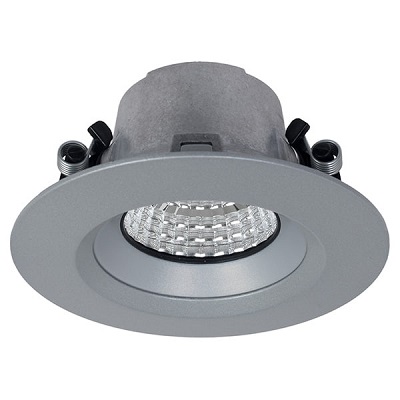

Finishes Available: White, Black or Silver colour.

Dimensions: Ø = 100mm x 48mm deep  (Cutout: 83mm-92mm)

Wattage: Dependent on Driver used:

  • 150mA   = 6.8w / 550 Lumens
  • 220mA = 9.2w / 800 Lumens
  • 300mA = 13.2w / 1000 Lumens (CA-135 Rated)

Colour Temperature: Extra Warm White (2700k) / Warm White (3000k) / Natural White (4000k) /  Now available with Sunset dimming technology; 3000k-2200k

CRI: Options of 90 or 97

Beam Spread: 20 degree / 40 degree / 60 Degree options

Driver: Includes Dimmable Driver

Warranty: 7 years Luminaire / 5 years Driver


Designed and made in Nelson, New Zealand
